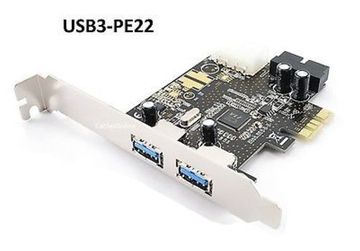

USB 3.0 2-Port PCI-e Controller Card w/ On-Board 20-Pin Header & 4-Pin Molex

USB 3.0 2-Port PCI-e Controller Card w/ On-Board 20-Pin Header & 4-Pin Molex

Super speed USB 3.0 PCI-Express Card features 2 external USB 3.0 ports and one internal 20-pin USB 3.0 header which can be used simultaneously.

Features:

• Based on VLI VL80x USB 3.0 Host Controller IC
• Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 0.96
• Compliant with PCI Express Base Specification 2.0
• PCI-Express 2.0 1-Lane (x1) Interface with Data Transfer Rate Up to 5Gbps
• Backwards Compatible to PCI-Express 1.0a with Data Transfer Rate Up to 2.5Gbps
• Internal HDD Power Connector for Supplying Extra +5V Power to the USB Ports
• USB Interface:
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Provide USB 3.0 Super-speed (5Gbps) Host Port, Backward Compatible with USB 2.0 High-speed (480Mbps), Full-speed (12Mbps) and low-speed (1.5Mbps) Interface
• Supports All USB Compliant Data Transfer Types: Control, Bulk, Interrupt, Isochronous
• Supports All USB Compliant Peripherals
• Full Support of Real Time Dynamic Insertion and Removal of USB Devices

Package Contents:

• USB 3.0 2-port PCI-e Controller Card with 20-pin Header
• Driver CD
• User Manual

CablesOnline Part Number: USB3-PE22
