Centronics 50-Pin IDC Type Female CN50 Crimp Connector for Ribbon Cable
Product Details

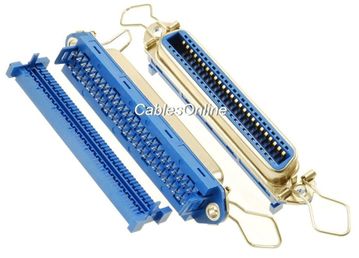

Centronics 50-Pin IDC Type Female CN50 Crimp Connector for Ribbon Cable
These connectors mate with any other standard 50-pin connectors, which are commonly found on SCSI, computers, electronic devices, and industrial equipment. The insulation displacement (IDC) contacts on these connectors allow them to be quickly and easily crimped onto 50-wire flat ribbon cable.
• Contact Resistance: 30m Ohm Max at DC 500V
• Current Rating: 1AMP
• Dielectric Withstand Voltage: AC 500V per minute
• Operating Temperature Range: -40°C to +105°C
• Contacts: Gold plated
• TL Size : 77mm x 16mm x 21mm
Specifications:
- Centronics 50 Pin Female
- 50-Pin IDC Ribbon Crimp type Connector
- 2.54mm IDC Pin Pitch
- Metal shell with PBT construction
CablesOnline Part Number: FC-204
