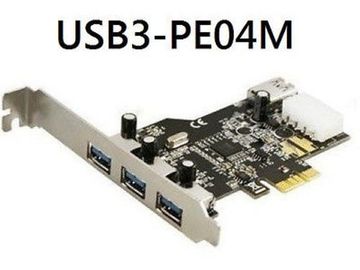

4-Port USB 3.0 PCI Express(x1) (3xExt + 1xInt) with 4-pin Molex Power Connector

4-Port SuperSpeed USB 3.0 PCI Express (x1) (3x Ext + 1x Int) with 4-pin Molex Power Connector

Specifications:

Fully compliant with one-lane (x1) PCI Express 2.0 specification

Three (3) external 5Gbps SuperSpeed USB 3.0 ports

One (1) internal 5Gbps SuperSpeed USB 3.0 port

SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.0¹

USB 3.0 complies with Intel eXtensible Host Controller Interface (xHCI)

Up to 5Gbps maximum transfer rate¹

SuperSpeed USB 3.0 is backwards compatible with USB 1.0/1.1/2.0 devices (data transfer rate at 1.5/12/480Mbps)

SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables

Built-in with 4-pin Molex Power Connector for added power source to better support power hungry bus-powered devices³

Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc.

Fully Plug-N-Play and Hot Swap compatible

Supports 32-bit & 64-bit Windows Vista/Server 2008/Windows 7/Windows 8

**To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot.

Electrical Specifications:

Power Input: 4-pin Molex power connector

Output Voltage per Port: DC +5V

Output Current per Port: 900mA (max)

Operating Temperature: 0 ~ 40 °C

System Requirements:

PC with 512MB of RAM and 1.0GHz or faster processor

One (1) available PCI Express 1.x or 2.x slot

32-bit & 64-bit Windows® Vista/Server 2008/Windows 7/Windows 8¹

To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required

Supports both 32-bit & 64-bit OSes

Make sure the power is well connected, otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.

Package Contents:

One (1) PCI Express card

One (1) low-profile bracket

Software drivers CD

User manual

CablesOnline Part Number: USB3-PE04M
