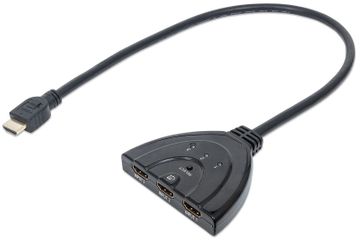

3-Port HDMI Switch with Integrated Cable. Pigtail Type, Manhattan

3-Port HDMI Switch with Integrated Cable. Pigtail Type, Manhattan 207423

3-Port HDMI Switch, HDMI 1.3, 3-Port with Integrated Cable, Manhattan 207423

Easily connect multiple HDMI sources to a single display.
The Manhattan 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display.

Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 3-Port HDMI Switch expands the connectivity options of your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it has a button so you can manually select sources when more than one HD video source is on at the same time.

Best Possible Image Quality
Full compliance with HDMI 1.3b and HDCP 1.0, 1.1 ensures the Manhattan 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3-D video, as well as LPCM, DTS and Dolby TrueHD audio.

Features:
Connect up to three HD video sources to a single HDMI port
Automatically detect an HD signal or manually switch with the push of a button
1080p resolution, 3-D, Deep Color
Works with Playstation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
HDCP compliant
Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
Supports 3-D video and 8-bits (24-bits total) Deep Color
Supports video amplifier bandwidth up to 2.25 Gbps for 1080p display
Plug and play
Plug and play: no special setup, power or remote
Integrated HDMI cable
Gold-plated contacts
Gold-plated contacts for corrosion free connections
Three-Year Warranty

Standards
• HDMI 1.3b
• HDCP 1.0 / 1.1
• CE
• FCC
• RoHS2

Connections
• HDMI male (output) (1)
• HDMI female (input) (3)

Signal Input/Output
• Input video signal: 400 – 600 mV
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range: 2.5 Gbps and 1080p resolution
• Output video: HDMI 1.3b, HDCP 1.0 / 1.1
• Frequency: 2.25 Gbps / 250 MHz

Video Resolutions
• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p

Physical
• Dimensions: 82 x 77 x 17 mm (3.2 x 3 x 0.7 in.)
• Weight: 91 g (3.2 oz.)

Package Contents
• HDMI Switch
• Instructions

Specifications:

• Connect up to three HD video sources to a single HDMI port
• Automatically detect an HD signal or manually switch with the push of a button
• Works with Playstation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
• (HDCP compliant. Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
• Plug and play: no special setup, power or remote. Integrated HDMI cables
