36in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable
Product Details

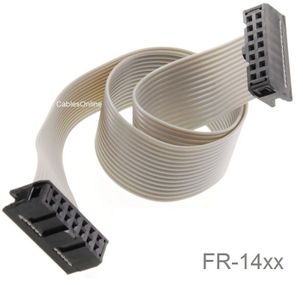

36in 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable
This 14-Pin (2x7) Female to Female 2.54mm-Pitch 14-wire IDC Flat Ribbon Cable features one 14-pin (2x7) connector on one end and one 14-pin (2x7) connector on the other end.
Specifications:
- Connector A: IDC 14-Pin (2x7) Female Connector
- Connector B: IDC 14-Pin (2x7) Female Connector
- Sturdy nylon construction ribbon cable
- Wire Gauge: 28AWG, Current Rating (per Wire): 1A, Voltage Rating: 300V
- Operating Temperature Range: -20°C to +105°C
- Length: 36 inches
CablesOnline Part Number: FR-1436
