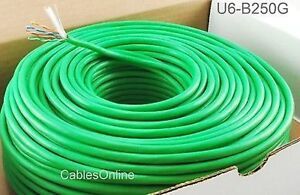

250ft Solid CAT6E CMR 550 Mhz, High-Performance 23 AWG Copper Bulk Cable, Green
Product Details
250FT Solid CAT6E CMR 550-Mhz, High-Performance 23 AWG Copper Bulk Cable, Green
These 250ft Ethernet cable rolls are ideal for installations and long runs.
Standards:
- UTP Cable CAT6E, 23 AWG, 4 Pair W/HDPE Insulation and Flame-Retardant PVC Jacket
- UL Listed Type CMR
- C(UL) listed CMG FT4
- ETL Listed Type CMR
- C(ETL) listed CMG FT4
- TIA/EIA?568-C.2, UL 1666 CMR RATED
- IEC 61156 AND ANSI/TIA-568-C.2
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet ô (IEEE 802.3)
- 16 Mbps Token Ringô (IEEE 802.5)
Physical Characteristics:
- Number of Conductor: Pairs 4
- Gauge: 23 AWG
- Stranding: Solid
- Conductor Material: Solid Annealed Bare Copper
- Rip Cord: Yes
- Insulation Material: Polyethylene
- Insulation Overall Diameter: 0.040 in. ± 0.0002 in.
- Insulation Average Thickness: 0.0088 in.
- Jacket: Flame Retardant PVC
- Outer Jacket Average Wall Thickness: 0.023 in.
- Outer Jacket Nominal O.D.: 0.244 in. ± 0.008 in.
CablesOnline Part Number: U6-B250G
