250ft CAT6e Shielded RJ45 FTP Solid Pure Copper Black Ethernet Bulk Cable
Product Details

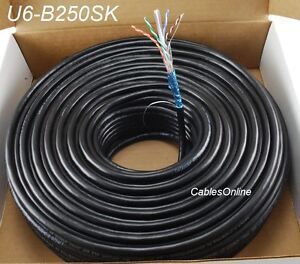

250ft CablesOnline CAT6e Shielded RJ45 FTP Solid Copper Black Ethernet Bulk Cable
These 250ft CAT6e 23AWG shielded 4-pair solid copper conductors 600Mhz riser rated black PVC jacket bulk cable rolls are ideal for installations and long runs. Shielding makes them perfect for areas where outside interference can be an issue.
Applicable Standards:
ETL Listed CMR Type FTP
C(ETL) listed FT4 FTP
ETL Verified to TIA ‐ 568‐C.2, and ISO/IEC 11801
ROHS Compliant
ATM 155 Mbps
Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4,
1000 Mbps 1000BASE‐T Gigabit Ethernet (IEEE 802.3)
16 Mbps Token Ring (IEEE 802.5)
Physical Characteristics:
Number of Conductor Pairs: 4
Gauge Size: 23 AWG
Stranding: Solid
Conductor Material: Solid Annealed Bare Pure Copper
Shield Material: AL Foil Shield
Rip Cord: Yes
Insulation Material: Polyethylene
Insulation Overall Diameter: 0.045 in. ± 0.0002 in
Insulation Average Thickness: 0.0106 in
Jacket: Flame Retardant PVC
Outer Jacket Average Wall Thickness: 0.0236 in.
Outer Jacket Nominal O.D.: 0.2992 in. ± 0.008 in.
Color Code:
Pair 1 White / Blue, Blue
Pair 2 White / Orange, Orange
Pair 3 White / Green, Green
Pair 4 White / Brown, Brown
Specifications:
- 250ft High Grade CAT6e Shielded 600Mhz Bulk Cable
- Foil Shielding with Drain Wire
- 23AWG Solid Bare Pure Copper Conductors
- RoHS Compliant, ETL Listed, CMR Riser Rated
- Color: Black, Length: 250 feet
CablesOnline Part Number: U6-B250SK
