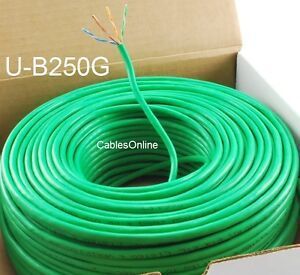

250ft Cat5e 350MHz UTP 24AWG solid pure copper, Riser Rated CMR Cable, Green
Product Details
250ft Cat5e 350MHz UTP 24AWG solid pure copper, Riser Rated CMR Cable, Green
These Ethernet bulk cables are made of 100% pure bare copper wire and are ideal for applications were pure copper wire is required and professional custom installation is needed.
Applicable Standards:
ETL Listed Type CMR
C(ETL) listed CMG FT4
ETL Verified to TIA ‐ 568‐C.2, and ISO/IEC 11801
ROHS Compliant
ATM 155 Mbps
Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4,
1000 Mbps 1000BASE‐T Gigabit Ethernet (IEEE 802.3)
16 Mbps Token Ring (IEEE 802.5)
Physical Characteristics:
Number of Conductor Pairs: 4
Conductor Material: Solid Annealed Bare Copper
Stranding: Solid
Rip Cord: Yes
Insulation Material: Polyethylene
Insulation Overall Diameter: 0.035 in. ± 0.0002 in
Insulation Average Thickness: 0.0081 in
Jacket: Flame Retardant PVC
Outer Jacket Average Wall Thickness: 0.023 in.
Outer Jacket Nominal O.D.: 0.200 in. ± 0.008 in.
Color Code:
Pair 1 White / Blue, Blue
Pair 2 White / Orange, Orange
Pair 3 White / Green, Green
Pair 4 White / Brown, Brown
Specifications:
- 24AWG pure copper 4 Pair UTP (Unshielded Twisted Pair) Ethernet cable
- Solid Wire , Pure Copper
- 350MHz rated
- CMR rated , ETL listed
- Color: Green, Length: 250 feet
CablesOnline Part Number: U-B250G
