20ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable

20ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable
20ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable
Item # XR-P5F20
Price: $32.95
Quantity:

Product Details

20ft XLR 5-Pin Female to 2x 3-Pin Male Stereo or Dual-Elements Microphone Cable

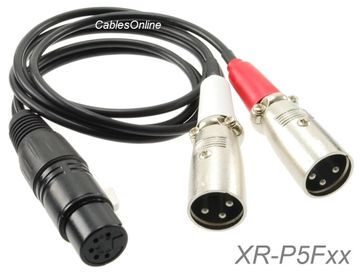

This XLR stereo or dual-elements microphone cable features an XLR 5-pin female connector on one end and 2 XLR 3-pin male connectors on the other end, the cable is suitable for microphones like : Shure VP88, Audio-Technica AE2500, Audio-Technica AT8022, Audio-Technica BP4025 and other mics with the following Pinout.

• Pin-1 Ground
• Pin-2 Left+
• Pin-3 Left-
• Pin-4 Right+
• Pin-5 Right-

• Pin-1 Screen/earth
• Pin-2 Left channel hot
• Pin-3 Left channel cold
• Pin-4 Right channel hot
• Pin-5 Right channel cold


Specifications:


  • XLR 5-Pin Female
  • 2x XLR 3-Pin Male
  • 2x Shielded 2 conductor flexible wires
  • Jacket: PVC
  • OD: 3.5mm
  • Length: 20 feet

CablesOnline Part Number: XR-P5F20
