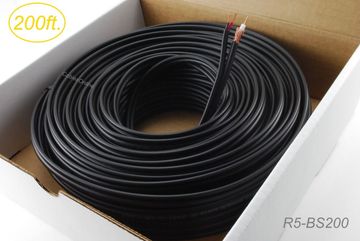

200ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black

200ft Siamese RG59/U 95% 2-Conductor/18AWG Copper CCTV Bulk Cable, Black

These Black PVC Siamese Coax/Power CCTV Bulk Cable rolls are ideal for security camera installations.

RG59 Coax
• Center Conductor: 20 AWG
• Diameter: 0.03228 inches
• Insulation: Foamed PE
• Nom. Thickness: 0.0559 inches
• Insulation Diameter 0.1441 inches

• Braid Shield: Copper Clad Aluminum
• Coverage Area: 95 %

Power18/2
• Conductor Solid Copper
• AWG 18
• Number of Conductors 2
• Number of Strands 7
• Insulation: PVC

• Temperature Rating: -40°C to 60°C
• Impedence: 75 ± 3.0 Ohms
• Capacitance: 15.5 pF/ft
• Conductor DCR@20°C: 28.6 ohms/1000ft
• Velocity of Propagation: 84%
• ROHS Compliant: Yes

Electrical Performance:

Frequency Attenuation
• 1 MHz 1.15 dB/100m
• 50 MHz 5.71 dB/100m
• 100 MHz 8.20 dB/100m
• 200 MHz 11.61 dB/100m
• 400 MHz 16.73 dB/100m
• 700 MHz 22.15 dB/100m
• 1000 MHz 28.87 dB/100m

Specifications:

• 125ft Siamese Coax/Power CCTV Bulk Cable
• 95% Braid Shielding
• 20AWG Coax & 18AWG Power Conductors
• RoHS Compliant, ETL Listed
• Color: Black, Length: 200 feet

CablesOnline Part Number: R5-BS200
