18in IDC 34-Pin Male to Card-Edge 34-Pin Female 2.54mm-Pitch 34-wire Extension

18in IDC 34-Pin Male to Card-Edge 34-Pin Female 2.54mm-Pitch 34-wire Extension

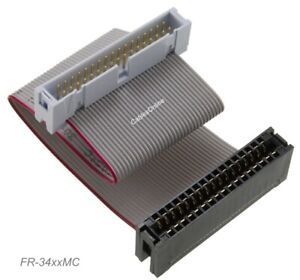

This 34-Pin Flat Ribbon Adapter Extension Cable features one IDC 34-pin (2x17) Male connector on one end and one Card-Edge 34-Pin Female connector on the other end.
The cable can be used for converting a 34-Pin IDC connector into a 34-Pin Card-Edge Connector

Specifications:

• Connector A: Card-Edge 34-Pin Female, 2.54mm pitch
• Connector B: 34-Pin Male IDC Connector, 2.54mm pitch
• Sturdy nylon construction ribbon cable
• Number of Wires: 34, Pitch: 1.27mm, Wire Gauge: 28AWG, Current Rating (per Wire): 1A
• Voltage Rating: 300V. , Operating Temperature Range: -20°C to +105°C
• Length: 18 inches

CablesOnline Part Number: FR-3418MC
