Home > 18-inch 34-Pin (2x17) 2.54mm-Pitch Male/Female IDC Floppy Drive Ribbon Extension

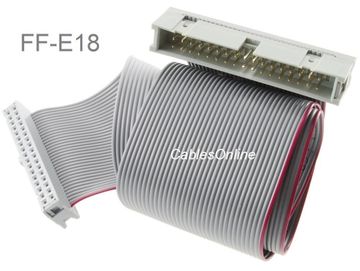

18-inch 34-Pin (2x17) 2.54mm-Pitch Male/Female IDC Floppy Drive Ribbon Extension

18-inch 34-Pin (2x17) 2.54mm-Pitch Male/Female IDC Floppy Drive Ribbon Extension
18-inch 34-Pin (2x17) 2.54mm-Pitch Male/Female IDC Floppy Drive Ribbon Extension
Item # FF-E18
Price: $6.25
Quantity:

Product Details

18-inch 34-Pin (2x17) 2.54mm-Pitch Male/Female IDC Floppy Drive Ribbon Extension


This male to female ribbon cable is ideal for extending a existing 34-pin Floppy Ribbon Cable, can also be used for ASP, ISP, JTAG, AVR, in-system programmers, various automation units, or any other applications that requires 34-pin (2x17) ribbon/ IDC cable.


Specifications:


  • Connector A: 34-Pin Female IDC Connector, 2.54mm pitch
  • Connector B: 34-Pin Male IDC Connector, 2.54mm pitch
  • Sturdy nylon construction ribbon cable
  • Operating Temperature Range: -20°C to +105°C
  • 28 AWG
  • Current Rating (per Wire): 1A
  • Voltage Rating: 300V
  • Length 18 inches

CablesOnline Part Number: FF-E18
